GBA Laminated 3 inch IPS screen kit

FunnyPlaying

Regular price $60.79

Includes taxes

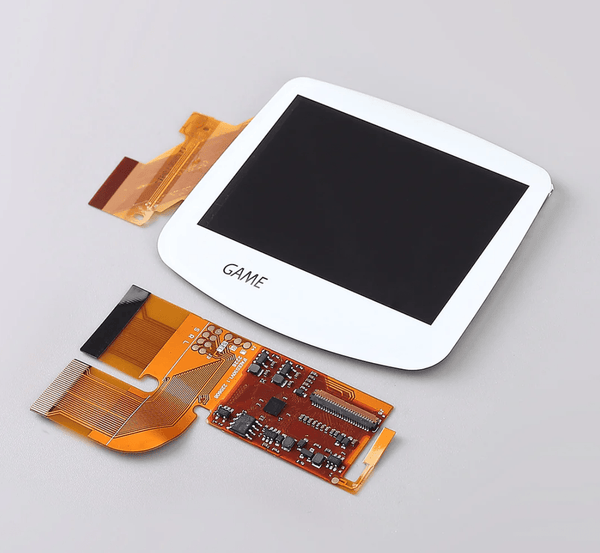

FunnyPlaying 3.0 inch laminated IPS screen for the GameBoy Advance (GBA)

No soldering required!

Perfect upgrade for your GBA! Install this backlit IPS screen with pre-installed laminated glass lens to enhance your enjoyment of the popular Nintendo handheld. See for yourself the enhanced brightness, colour and clarity.

For basic install of this kit there is no soldering required. Screen is plug and play (see notes below).

Pair with a laminated IPS ready GBA shell from here

Compatible with both 32 pin and 40 pin GBA motherboards. Lens does have "GAME BOY" written on it, image below only shows "GAME".

Install guide here

Features;

  • Laminated panel, No dust, More realistic display effect.
  • Add OSD menu window, With power-off memory.
  • At the lowest brightness, the kit power consumption is 0.14w
  • More display effects and Mixed frame switch.
  • Adjust the brightness by touch near LOGO position.

What is included;

Laminated IPS LCD                      × 1

Main ribbon                                 × 1

Wires for OSD features                × 3

Laminated Bracket                       × 1

Whats not included;

  • Custom shell designed for this laminated screen
  • Foam pad no longer included as bracket has been revised, pad is no longer needed.

Notes;

1. OSD menu is available with soldering of three wires. IPS screen will still function normally without these wires if you choose not to install them.

2. Shell modification is required if you do not use an IPS ready moulded shell. We do not recommend this.

3. Separate lens is not required, as the screen come with a glass lens laminated to it.

4. Please test your screen kit for faults before installation, photo or video will be required for potential warranty claims. Any issues are to be reported before installing inside a shell or adhering to gasket. Once stuck down it will not remove without damaging the screen or the ribbon.

5. It is advisable to wear a static bracelet before installing the screen to avoid any potential shorts.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
S
Description: Value for money, Works as intended, Required instructions
Fantastic screen!

Had a couple troubles installing, but take your time and it'll be well worth it.
Skipped soldering button controls for screen brightness & modes, and happy to report the touch controls work great.
Many levels of brightness, incredible viewing angles and crystal clear picture.
Absolutely recommended. Thanks!

C
Cameron M.
Description: Works as intended, Easy to install
Easy Installation, Great Display

First time Game Boy modder here. This screen kit was easy to install with only a minimal amount of soldering required to get button screen controls, however it is completely optional as the included touch controls work great as well. The fact that this display is laminated also means you don't have to worry about dust getting caught between the screen and screen lens during installation. Definitely can recommend.

C
Calvin
Description: Works as intended, Easy to install
Good Screen

Nice screen, instructions don't exactly tell you what test points to solder to, I think I used TP2, TP8 and TP9. One thing though the select button kept shorting on the board near the screen wire. I put some tape over it and problem solved.
Was happy to get it though, seems hard to find this screen elsewhere.
